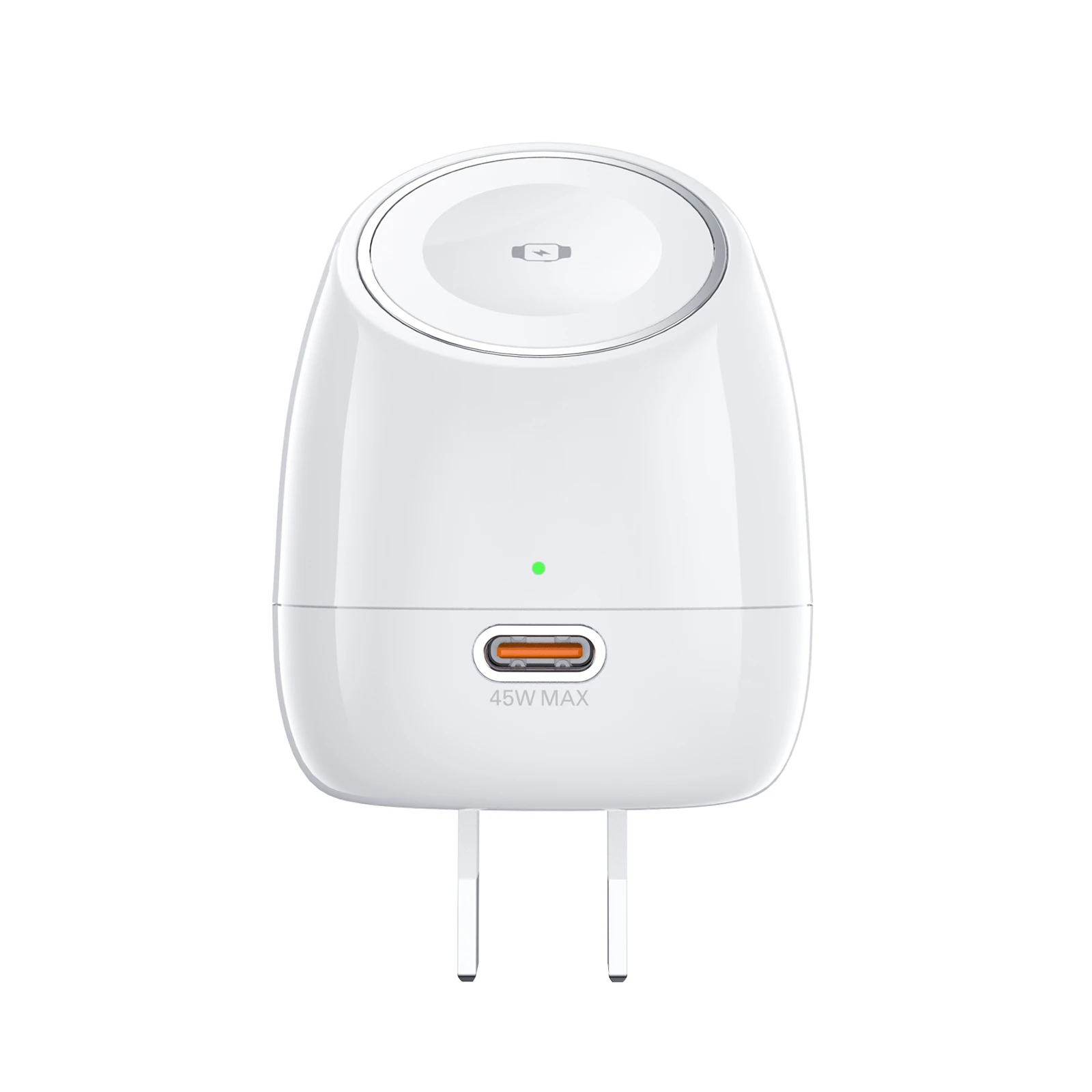

CHG600 45W GaN Wall Charger — 5W watch wireless charging

Model: CHG600

Request a Quote ↗Discuss on WhatsApp ↗

CHG600 combines 5W watch wireless charging with a foldable plug.

AC input100–240V AC; 50/60Hz; 1.2A max
USB-C output5V / 3A; 9V / 3A; 12V / 3A; 15V / 3A; 20V / 2.25A
Watch wireless output5W max
Simultaneous output35W USB-C + 5W wireless

MOQ, sample availability and lead time are confirmed by model and project.

Request a Quote

The model is included in your inquiry.

01 / PRODUCT OVERVIEW

Product Overview

Key features: 45W GaN charging; 5W watch wireless charging; Foldable plug; Breathing status light. Choose the plug version for the destination market and the cable configuration required for your product range. Single-port maximum and simultaneous output differ; use the output combinations listed below.

02 / TECHNICAL SPECIFICATIONS

Specifications

Model-specific specifications and operating conditions.

Chargers technical specifications
Input	100–240V AC; 50/60Hz; 1.2A max
Output	5V / 3A; 9V / 3A; 12V / 3A; 15V / 3A; 20V / 2.25A
AC input	100–240V AC; 50/60Hz; 1.2A max
USB-C output	5V / 3A; 9V / 3A; 12V / 3A; 15V / 3A; 20V / 2.25A
Watch wireless output	5W max
Simultaneous output	35W USB-C + 5W wireless
Dimensions	46 × 73 × 46mm
Weight	202g
Housing	White
Features	45W GaN charging
Features	5W watch wireless charging
Features	Foldable plug
Features	Breathing status light

03 / CUSTOMIZATION

Customization Options

Depending on the model and project, we can support functional and configuration changes, logo printing or laser engraving, packaging customization, and new product design & development.
