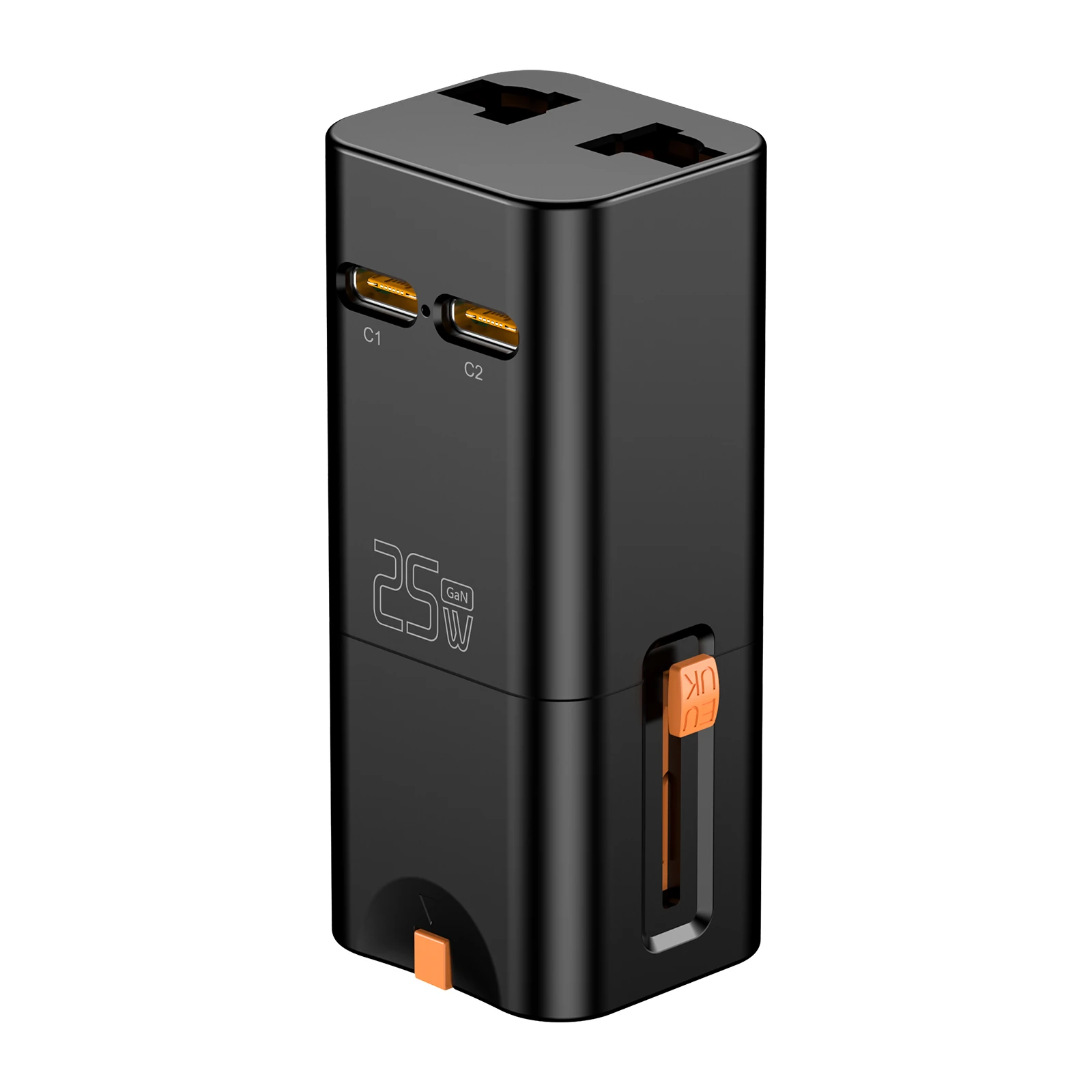

OL-H01-PD25 25W GaN Travel Adapter with Dual USB-C and Plug Cover

Model: OL-H01-PD25

Request a Quote ↗Discuss on WhatsApp ↗

A slim 25W PD travel adapter with two USB-C ports, four plug formats and a protective plug cover.

USB-C1/C2 maximum output25W
USB ports2 × USB-C
AC sockets1
Dimensions75 × 35 × 32mm
Plug formatsUS / AU / UK / EU

MOQ, sample availability and lead time are confirmed by model and project.

Request a Quote

The model is included in your inquiry.

01 / PRODUCT OVERVIEW

Product Overview

The compact 75 × 35 × 32mm body combines USB-C charging and an AC socket for travel use. Each USB-C port supports up to 25W when used individually; the listed shared USB output is 5V / 3A, 15W. A 10A auto-resetting fuse is specified. Black and white versions are shown. The cover protects the plug assembly during storage; it is not a battery case. Check mains voltage and appliance rating before use.

02 / TECHNICAL SPECIFICATIONS

Specifications

Model-specific specifications and operating conditions.

Chargers technical specifications
Dimensions	75 × 35 × 32mm
Interfaces	2 × USB-C + 1 × AC
AC output	250V~10A/2500W;100V~10A/1000W
USB-C1/C2 output	5V/3A;9V/2.77A;12V/2.08A (25W max.)
Shared USB output	5V/3A (15W max.)
Housing material	PC
Fuse	10A auto-resetting fuse

03 / CUSTOMIZATION

Customization Options

Depending on the model and project, we can support functional and configuration changes, logo printing or laser engraving, packaging customization, and new product design & development.
